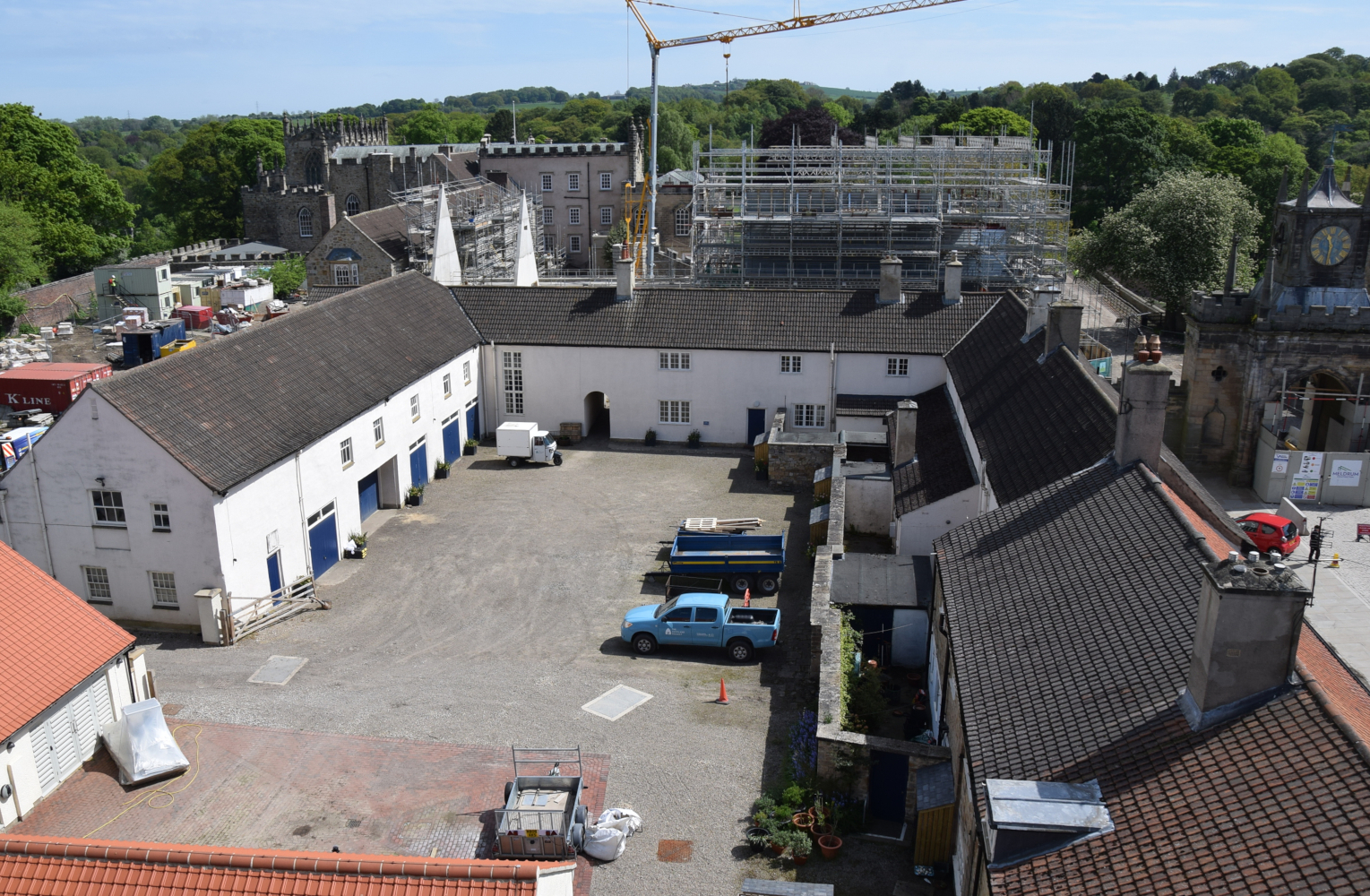

The College seen from the west. The Robinson Arch at the extreme right adjoins the south range
The College seen from the west. The Robinson Arch at the extreme right adjoins the south range (01_AuckCastle_College_5002.jpg)
[ DOWNLOAD] (Full Resolution) right-click and save file
|
The College seen from the west. The Robinson Arch at the extreme right adjoins the south range
(01_AuckCastle_College_5002.jpg) |
JPG
The College seen from the west. The Robinson Arch at the extreme right adjoins the south range
The College seen from the west. The Robinson Arch at the extreme right adjoins the south range (01_AuckCastle_College_5002.jpg)
[ DOWNLOAD] (Full Resolution) right-click and save file
|
1.68 Mb
|

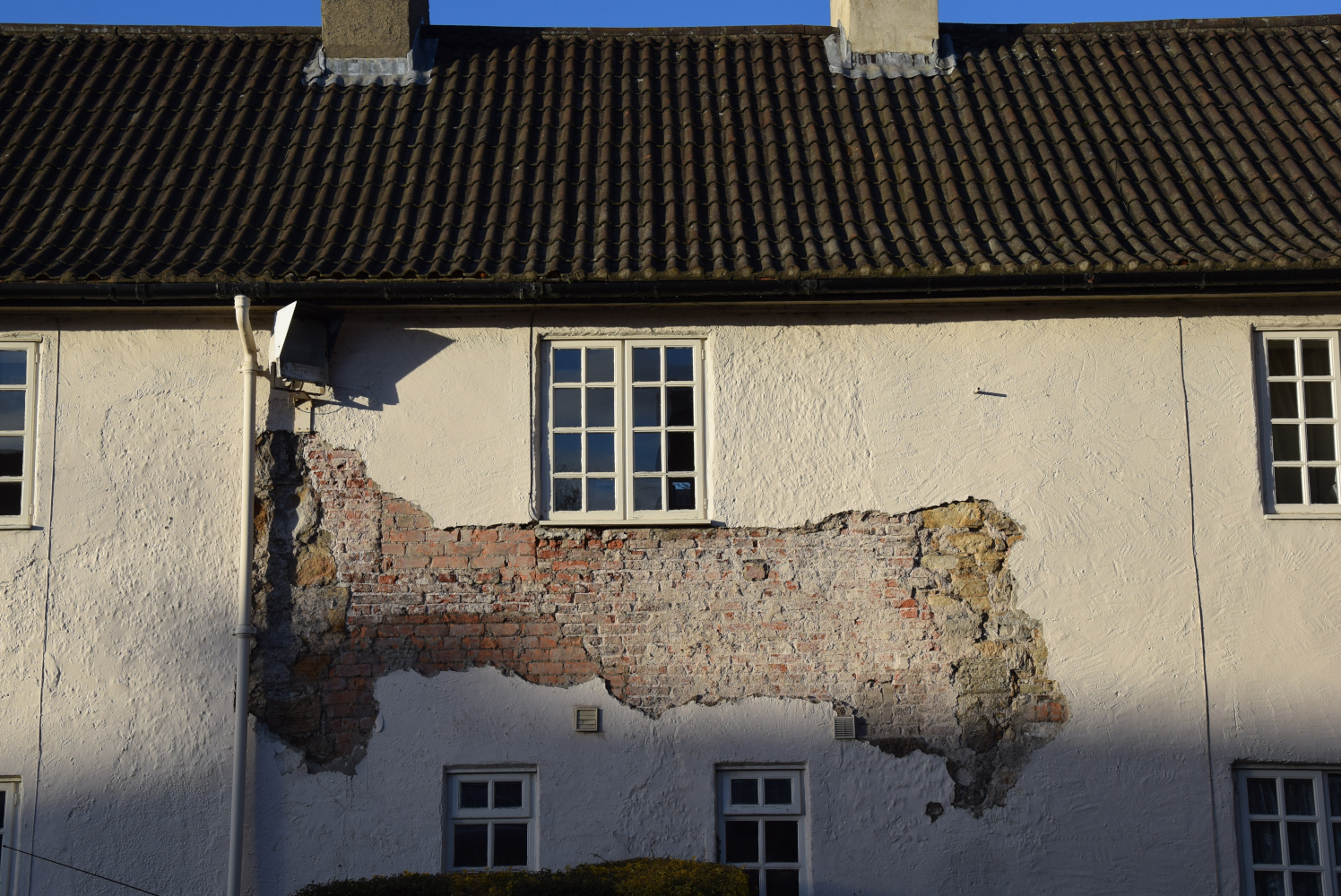

Initial plaster stripping on the south face of the range
Initial plaster stripping on the south face of the range (02_AuckCastle_College_5002.jpg)
[ DOWNLOAD] (Full Resolution) right-click and save file
|
Initial plaster stripping on the south face of the range
(02_AuckCastle_College_5002.jpg) |
JPG
Initial plaster stripping on the south face of the range
Initial plaster stripping on the south face of the range (02_AuckCastle_College_5002.jpg)
[ DOWNLOAD] (Full Resolution) right-click and save file
|
976 Kb
|

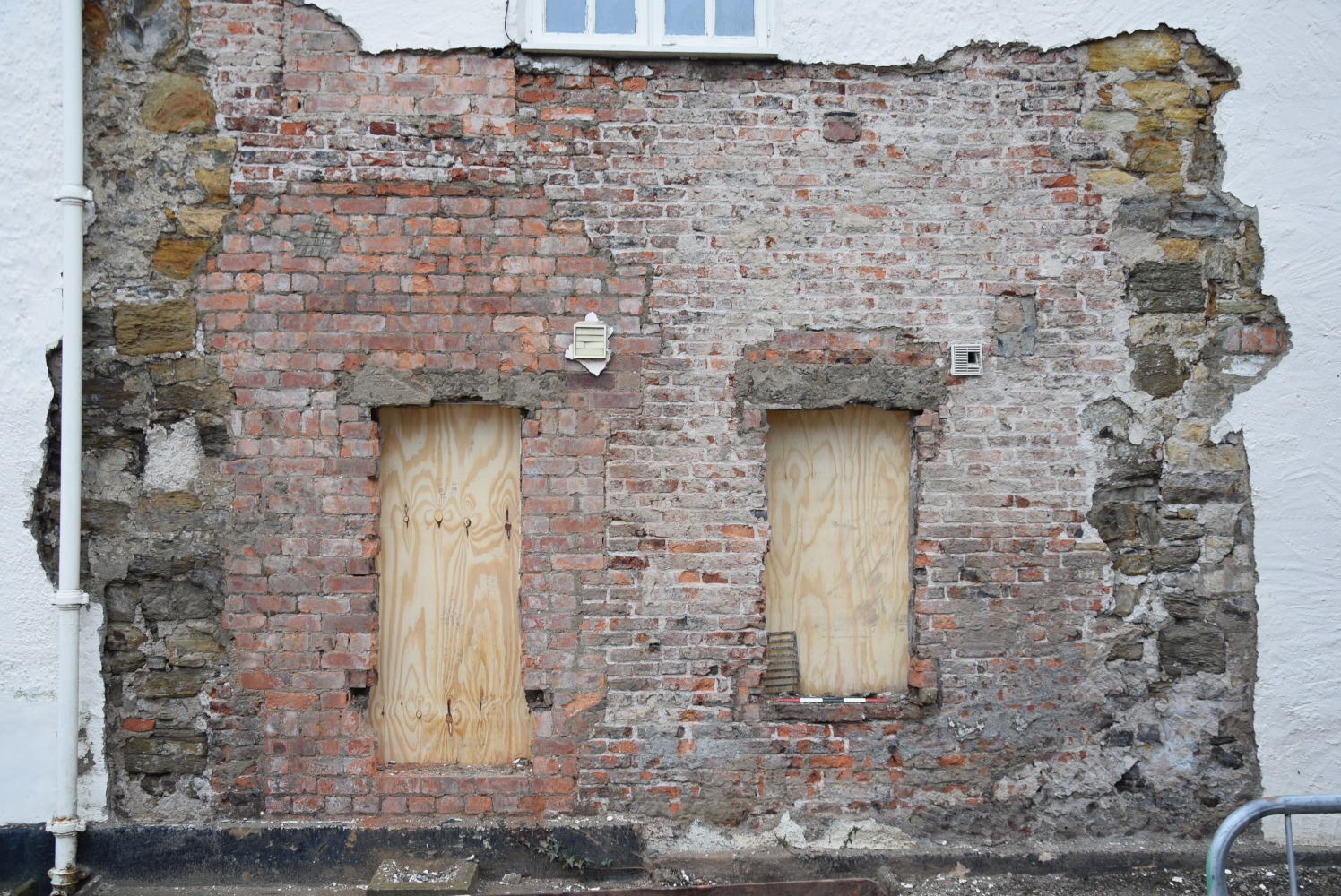

The south face of the old arch at ground-floor level
The south face of the old arch at ground-floor level (03_AuckCastle_College_5002.jpg)
[ DOWNLOAD] (Full Resolution) right-click and save file
|
The south face of the old arch at ground-floor level
(03_AuckCastle_College_5002.jpg) |
JPG
The south face of the old arch at ground-floor level
The south face of the old arch at ground-floor level (03_AuckCastle_College_5002.jpg)
[ DOWNLOAD] (Full Resolution) right-click and save file
|
960 Kb
|
The south face. There is no sign of a springer for the arch
The south face. There is no sign of a springer for the arch (04_AuckCastle_College_5002.jpg)
[ DOWNLOAD] (Full Resolution) right-click and save file
|
The south face. There is no sign of a springer for the arch
(04_AuckCastle_College_5002.jpg) |
JPG
The south face. There is no sign of a springer for the arch
The south face. There is no sign of a springer for the arch (04_AuckCastle_College_5002.jpg)
[ DOWNLOAD] (Full Resolution) right-click and save file
|
930 Kb
|

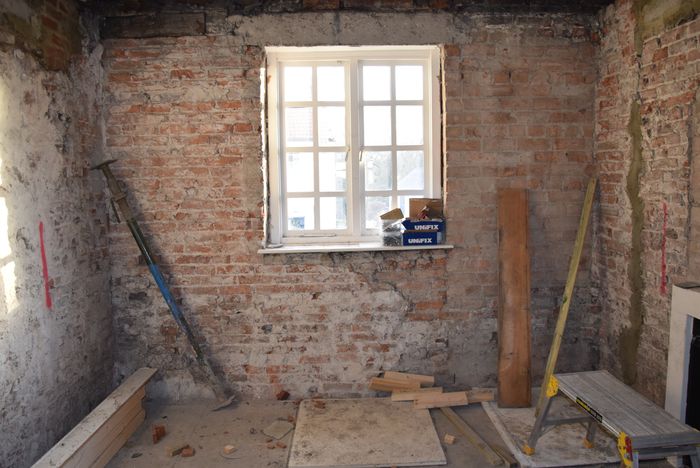

The inside of the south face on the first floor
The inside of the south face on the first floor (05_AuckCastle_College_5002.jpg)
[ DOWNLOAD] (Full Resolution) right-click and save file
|
The inside of the south face on the first floor
(05_AuckCastle_College_5002.jpg) |
JPG
The inside of the south face on the first floor
The inside of the south face on the first floor (05_AuckCastle_College_5002.jpg)
[ DOWNLOAD] (Full Resolution) right-click and save file
|
955 Kb
|

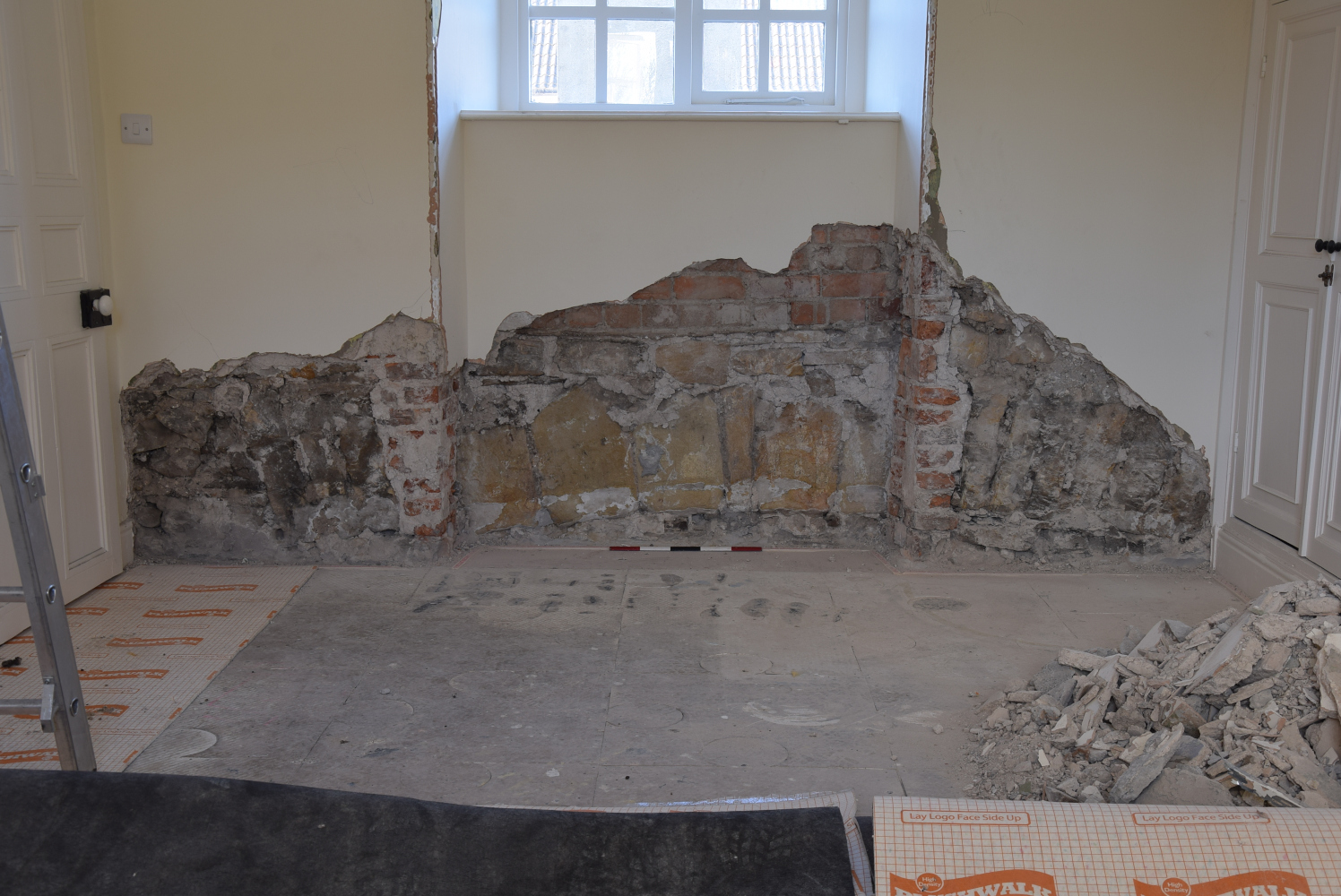

The north wall of the same room has a section of the old arch in its window recess and sections of the vault at either side
The north wall of the same room has a section of the old arch in its window recess and sections of the vault at either side (06_AuckCastle_College_5002.jpg)
[ DOWNLOAD] (Full Resolution) right-click and save file
|
The north wall of the same room has a section of the old arch in its window recess and sections of the vault at either side
(06_AuckCastle_College_5002.jpg) |
JPG
The north wall of the same room has a section of the old arch in its window recess and sections of the vault at either side
The north wall of the same room has a section of the old arch in its window recess and sections of the vault at either side (06_AuckCastle_College_5002.jpg)
[ DOWNLOAD] (Full Resolution) right-click and save file
|
765 Kb
|

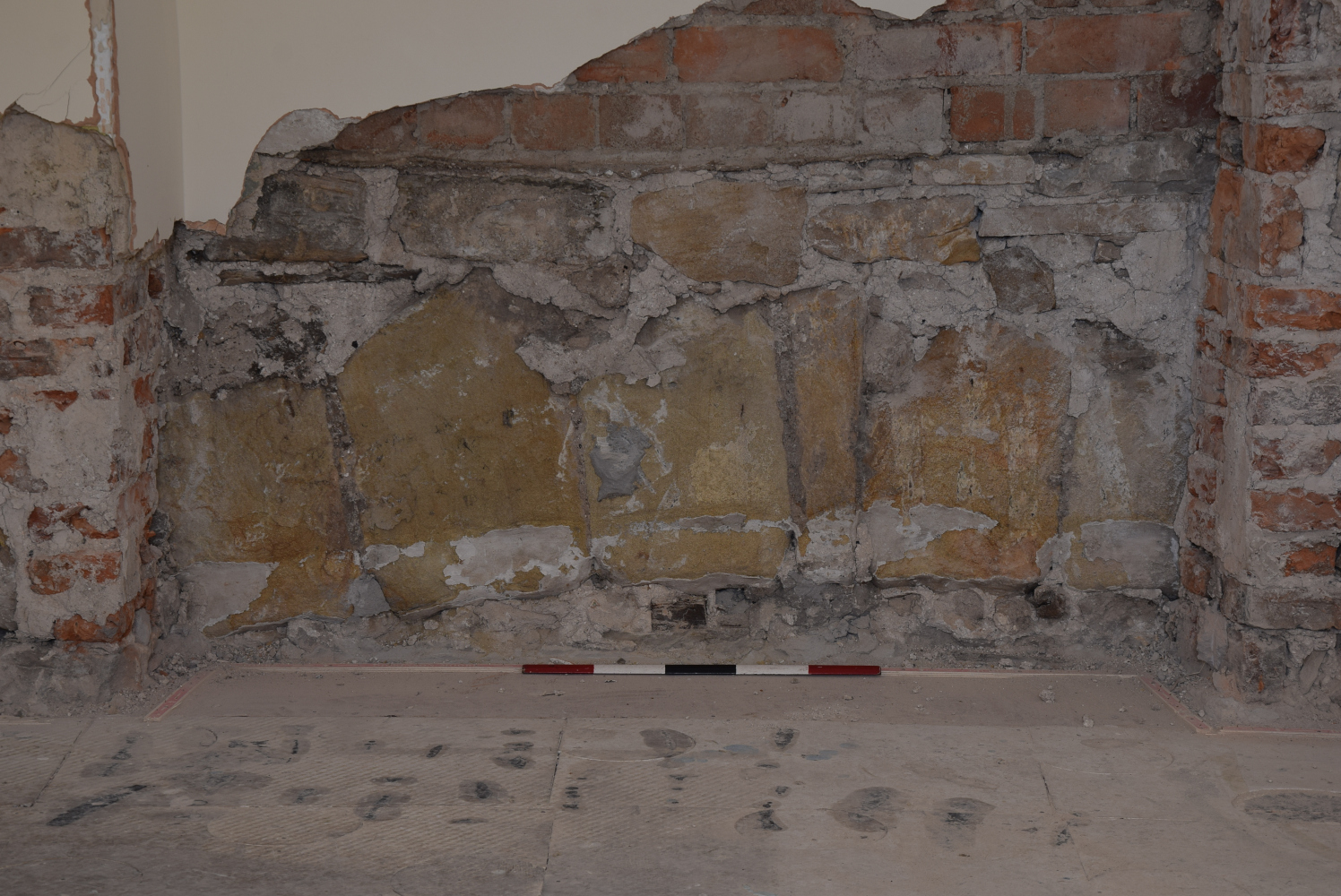

The dressed stones of the arch have a shallow rebate along their lower edge
The dressed stones of the arch have a shallow rebate along their lower edge (07_AuckCastle_College_5002.jpg)
[ DOWNLOAD] (Full Resolution) right-click and save file
|
The dressed stones of the arch have a shallow rebate along their lower edge
(07_AuckCastle_College_5002.jpg) |
JPG
The dressed stones of the arch have a shallow rebate along their lower edge
The dressed stones of the arch have a shallow rebate along their lower edge (07_AuckCastle_College_5002.jpg)
[ DOWNLOAD] (Full Resolution) right-click and save file
|
922 Kb
|

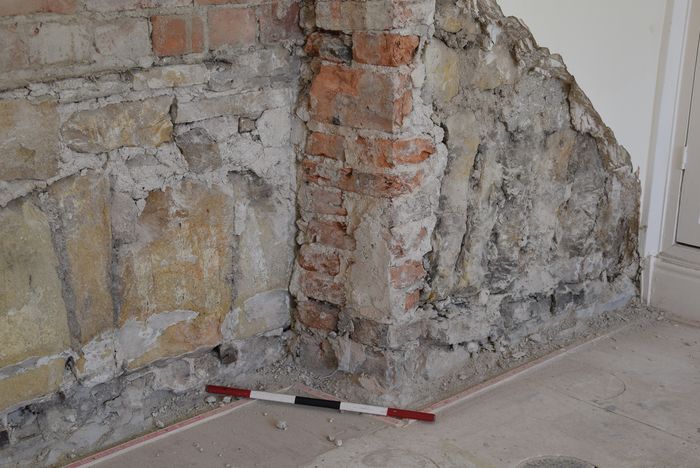

Just above the level of the rebate are the rougher blocks of the vault, seen at either side of the window
Just above the level of the rebate are the rougher blocks of the vault, seen at either side of the window (08_AuckCastle_College_5002.jpg)
[ DOWNLOAD] (Full Resolution) right-click and save file
|
Just above the level of the rebate are the rougher blocks of the vault, seen at either side of the window
(08_AuckCastle_College_5002.jpg) |
JPG
Just above the level of the rebate are the rougher blocks of the vault, seen at either side of the window
Just above the level of the rebate are the rougher blocks of the vault, seen at either side of the window (08_AuckCastle_College_5002.jpg)
[ DOWNLOAD] (Full Resolution) right-click and save file
|
861 Kb
|
The north face of the range at the start of plaster-stripping, after demolition of the lean-to rooms at the rear of nos. 15 and 16
The north face of the range at the start of plaster-stripping, after demolition of the lean-to rooms at the rear of nos. 15 and 16 (09_AuckCastle_College_5002.jpg)
[ DOWNLOAD] (Full Resolution) right-click and save file
|
The north face of the range at the start of plaster-stripping, after demolition of the lean-to rooms at the rear of nos. 15 and 16
(09_AuckCastle_College_5002.jpg) |
JPG
The north face of the range at the start of plaster-stripping, after demolition of the lean-to rooms at the rear of nos. 15 and 16
The north face of the range at the start of plaster-stripping, after demolition of the lean-to rooms at the rear of nos. 15 and 16 (09_AuckCastle_College_5002.jpg)
[ DOWNLOAD] (Full Resolution) right-click and save file
|
890 Kb
|

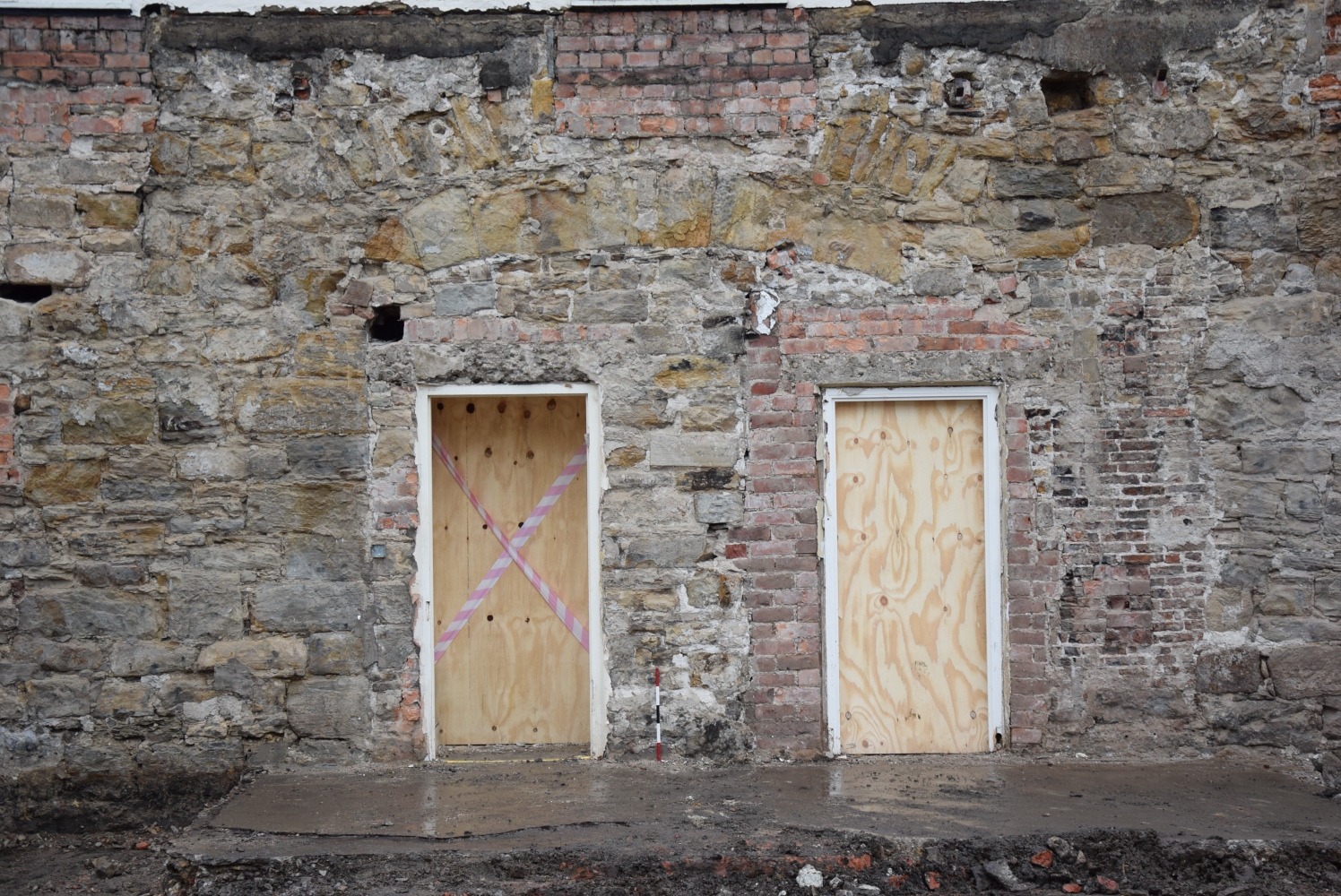

This view of the blocked north end of the gate shows dressed stone in the east jamb and the middle of the arch
This view of the blocked north end of the gate shows dressed stone in the east jamb and the middle of the arch (10_AuckCastle_College_5002.jpg)
[ DOWNLOAD] (Full Resolution) right-click and save file
|
This view of the blocked north end of the gate shows dressed stone in the east jamb and the middle of the arch
(10_AuckCastle_College_5002.jpg) |
JPG
This view of the blocked north end of the gate shows dressed stone in the east jamb and the middle of the arch
This view of the blocked north end of the gate shows dressed stone in the east jamb and the middle of the arch (10_AuckCastle_College_5002.jpg)
[ DOWNLOAD] (Full Resolution) right-click and save file
|
953 Kb
|
Detail showing the old stonework and the loss of the springer at the east side of the arch
Detail showing the old stonework and the loss of the springer at the east side of the arch (11_AuckCastle_College_5002.jpg)
[ DOWNLOAD] (Full Resolution) right-click and save file
|
Detail showing the old stonework and the loss of the springer at the east side of the arch
(11_AuckCastle_College_5002.jpg) |
JPG
Detail showing the old stonework and the loss of the springer at the east side of the arch
Detail showing the old stonework and the loss of the springer at the east side of the arch (11_AuckCastle_College_5002.jpg)
[ DOWNLOAD] (Full Resolution) right-click and save file
|
1016 Kb
|

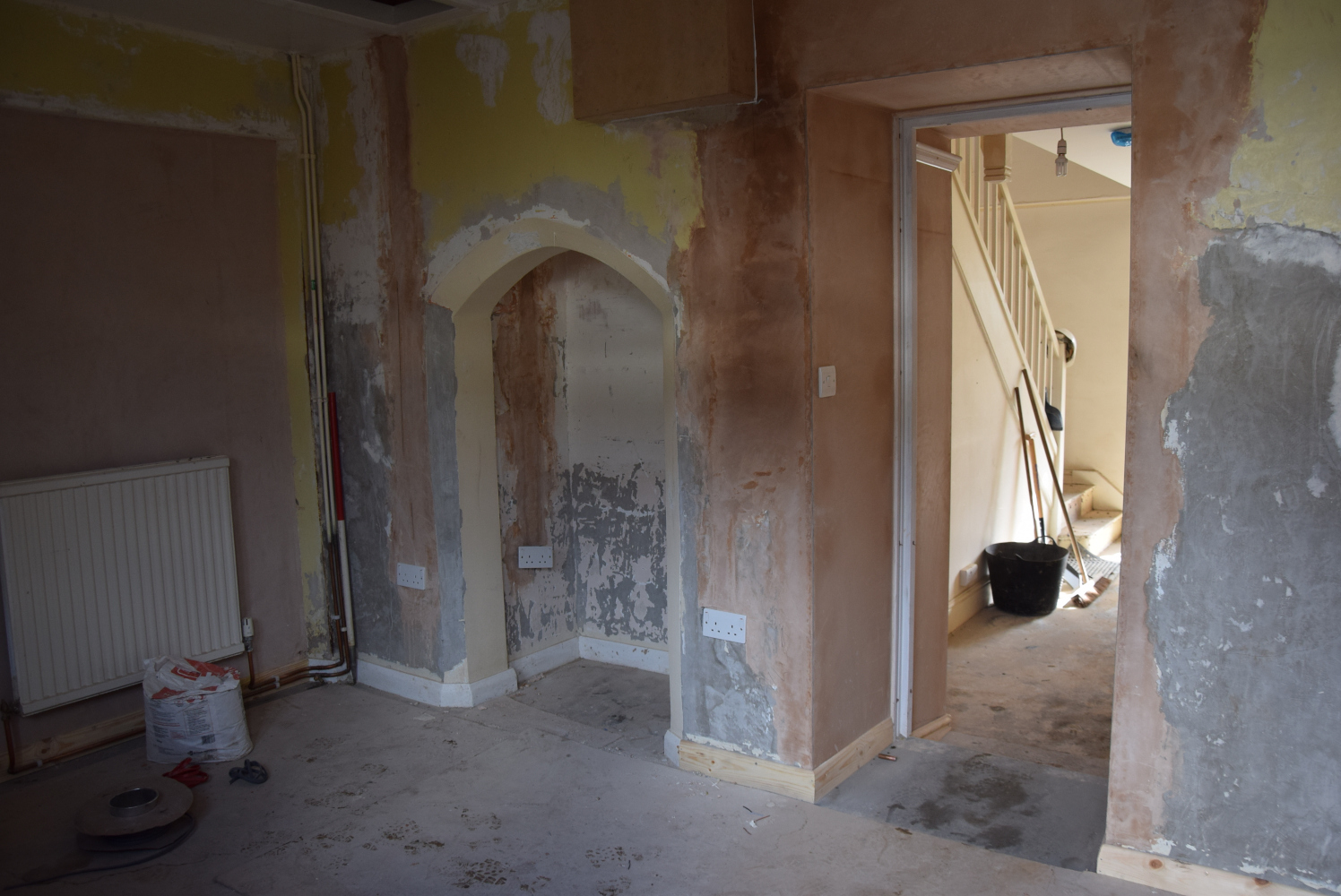

The medieval door A in the north wall of the range, and until recently this was in the kitchen of no. 14
The medieval door A in the north wall of the range, and until recently this was in the kitchen of no. 14 (12_AuckCastle_College_5002.jpg)
[ DOWNLOAD] (Full Resolution) right-click and save file
|
The medieval door A in the north wall of the range, and until recently this was in the kitchen of no. 14
(12_AuckCastle_College_5002.jpg) |
JPG
The medieval door A in the north wall of the range, and until recently this was in the kitchen of no. 14
The medieval door A in the north wall of the range, and until recently this was in the kitchen of no. 14 (12_AuckCastle_College_5002.jpg)
[ DOWNLOAD] (Full Resolution) right-click and save file
|
651 Kb
|

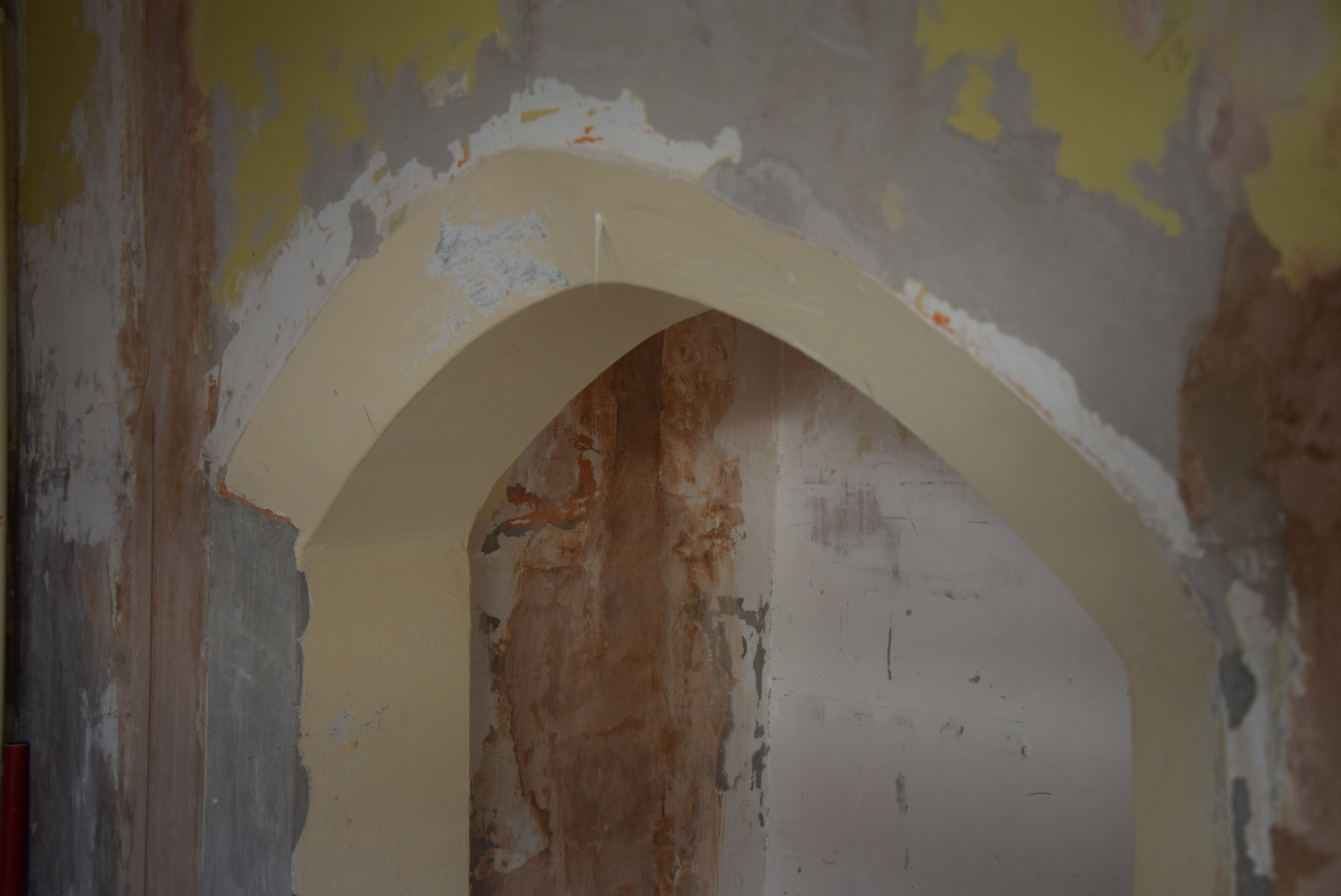

The head and jambs of the old door have been re-faced with modern cement
The head and jambs of the old door have been re-faced with modern cement (13_AuckCastle_College_5002.jpg)
[ DOWNLOAD] (Full Resolution) right-click and save file
|
The head and jambs of the old door have been re-faced with modern cement
(13_AuckCastle_College_5002.jpg) |
JPG
The head and jambs of the old door have been re-faced with modern cement
The head and jambs of the old door have been re-faced with modern cement (13_AuckCastle_College_5002.jpg)
[ DOWNLOAD] (Full Resolution) right-click and save file
|
544 Kb
|
The upper of two hinge pintles inside the medieval door
The upper of two hinge pintles inside the medieval door (14_AuckCastle_College_5002.jpg)
[ DOWNLOAD] (Full Resolution) right-click and save file
|
The upper of two hinge pintles inside the medieval door
(14_AuckCastle_College_5002.jpg) |
JPG
The upper of two hinge pintles inside the medieval door
The upper of two hinge pintles inside the medieval door (14_AuckCastle_College_5002.jpg)
[ DOWNLOAD] (Full Resolution) right-click and save file
|
497 Kb
|

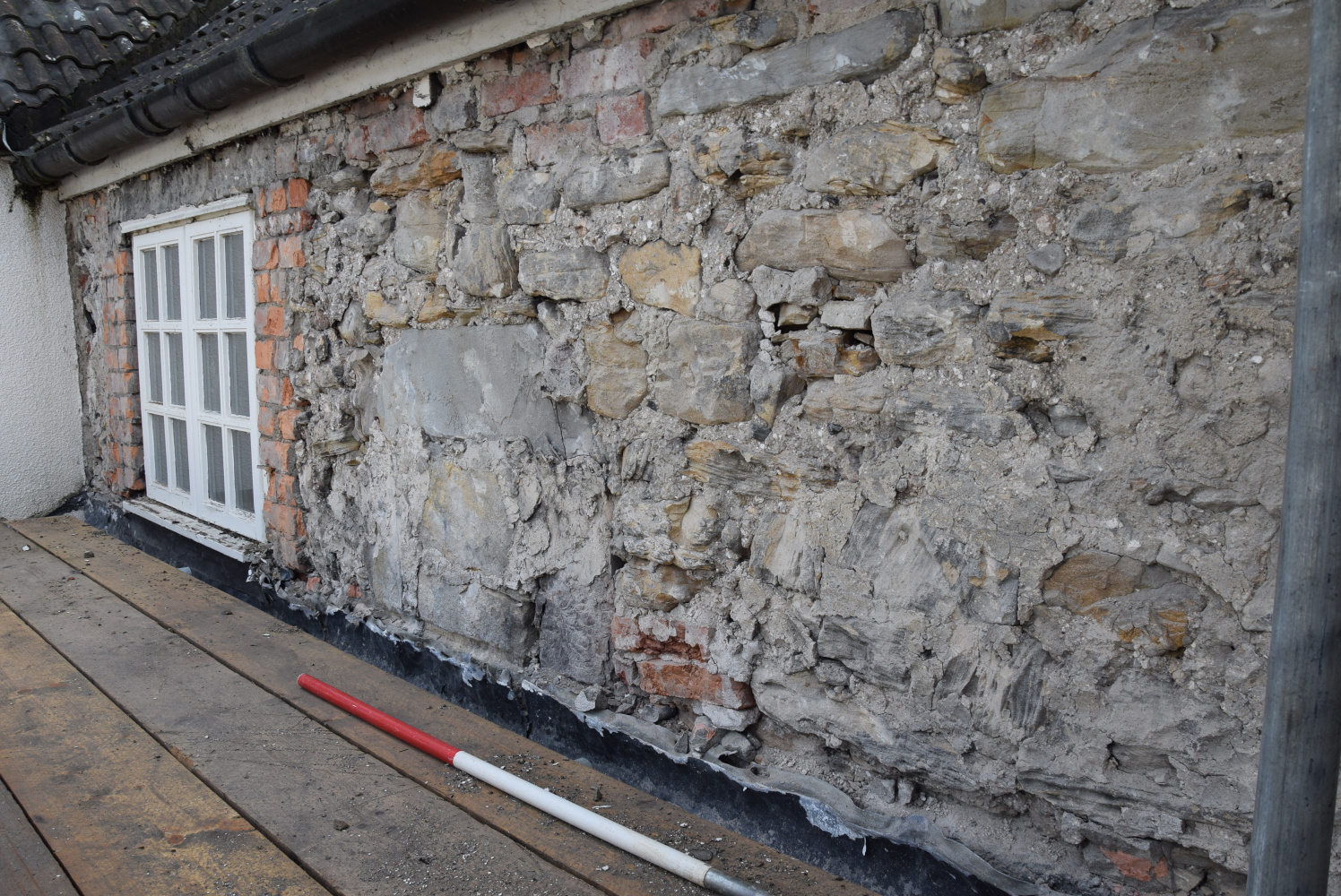

The large grey stone at the centre of this view is the lintel of the small window B near the east end of the first floor
The large grey stone at the centre of this view is the lintel of the small window B near the east end of the first floor (15_AuckCastle_College_5002.jpg)
[ DOWNLOAD] (Full Resolution) right-click and save file
|
The large grey stone at the centre of this view is the lintel of the small window B near the east end of the first floor
(15_AuckCastle_College_5002.jpg) |
JPG
The large grey stone at the centre of this view is the lintel of the small window B near the east end of the first floor
The large grey stone at the centre of this view is the lintel of the small window B near the east end of the first floor (15_AuckCastle_College_5002.jpg)
[ DOWNLOAD] (Full Resolution) right-click and save file
|
833 Kb
|

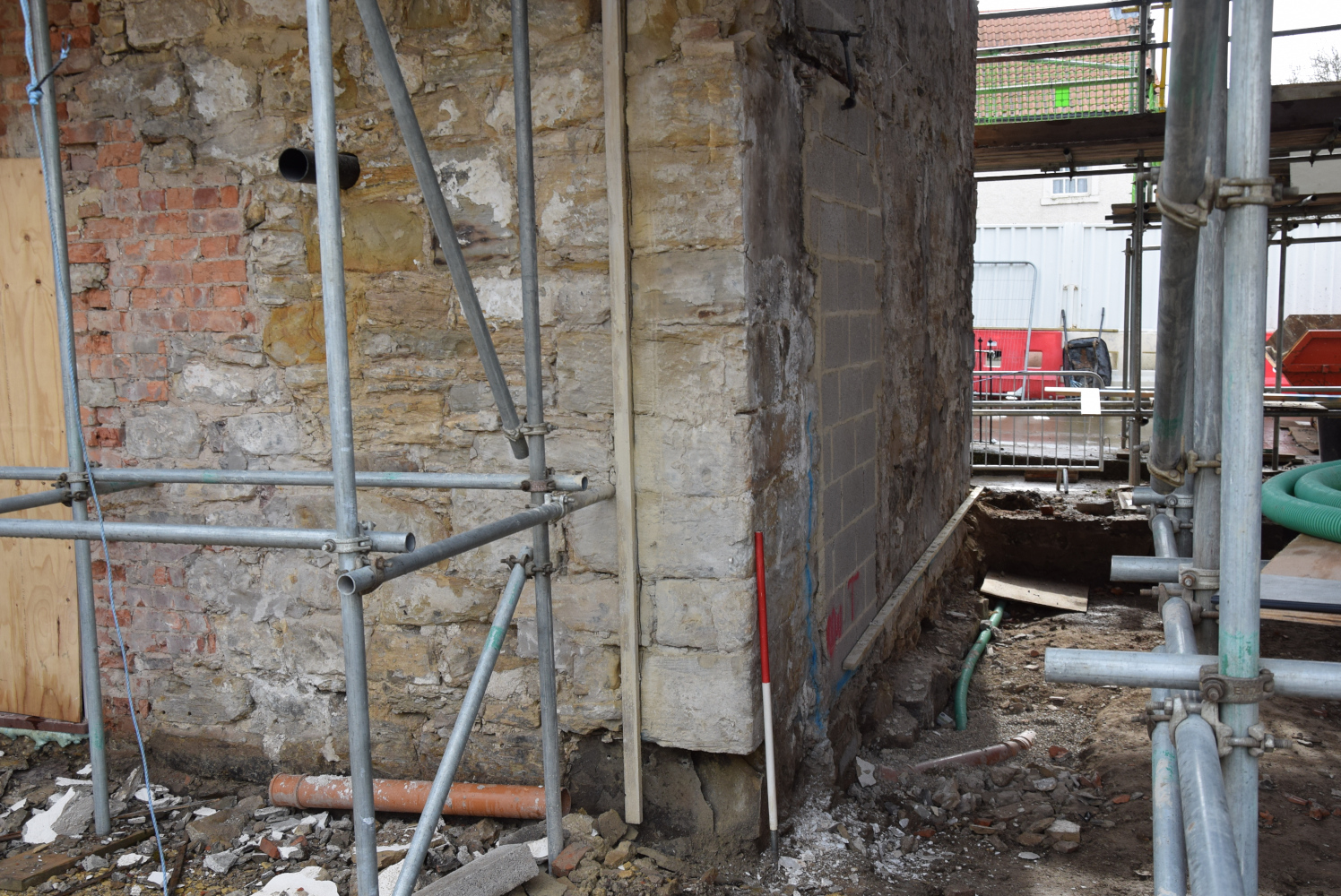

The north-east jamb C of the old gate, seen after the re-opening of the passage
The north-east jamb C of the old gate, seen after the re-opening of the passage (16_AuckCastle_College_5002.jpg)
[ DOWNLOAD] (Full Resolution) right-click and save file
|
The north-east jamb C of the old gate, seen after the re-opening of the passage
(16_AuckCastle_College_5002.jpg) |
JPG
The north-east jamb C of the old gate, seen after the re-opening of the passage
The north-east jamb C of the old gate, seen after the re-opening of the passage (16_AuckCastle_College_5002.jpg)
[ DOWNLOAD] (Full Resolution) right-click and save file
|
960 Kb
|

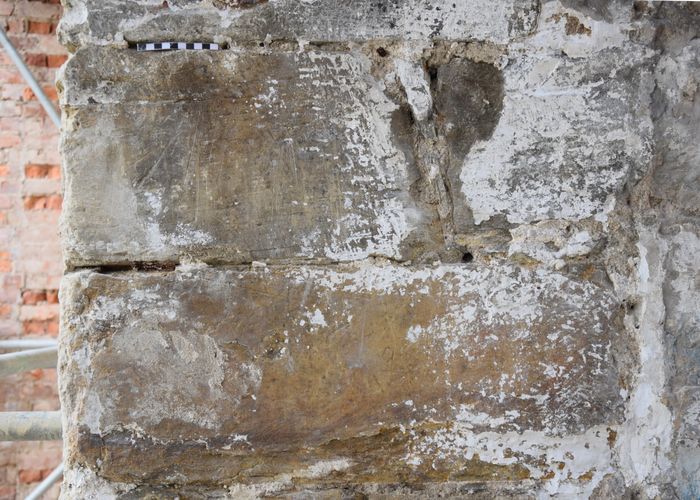

The upper of these two stones of the jamb has grooves and hollows caused by knife-sharpening. The lower has some crude lettering
The upper of these two stones of the jamb has grooves and hollows caused by knife-sharpening. The lower has some crude lettering (17_AuckCastle_College_5002.jpg)
[ DOWNLOAD] (Full Resolution) right-click and save file
|
The upper of these two stones of the jamb has grooves and hollows caused by knife-sharpening. The lower has some crude lettering
(17_AuckCastle_College_5002.jpg) |
JPG
The upper of these two stones of the jamb has grooves and hollows caused by knife-sharpening. The lower has some crude lettering
The upper of these two stones of the jamb has grooves and hollows caused by knife-sharpening. The lower has some crude lettering (17_AuckCastle_College_5002.jpg)
[ DOWNLOAD] (Full Resolution) right-click and save file
|
1.72 Mb
|

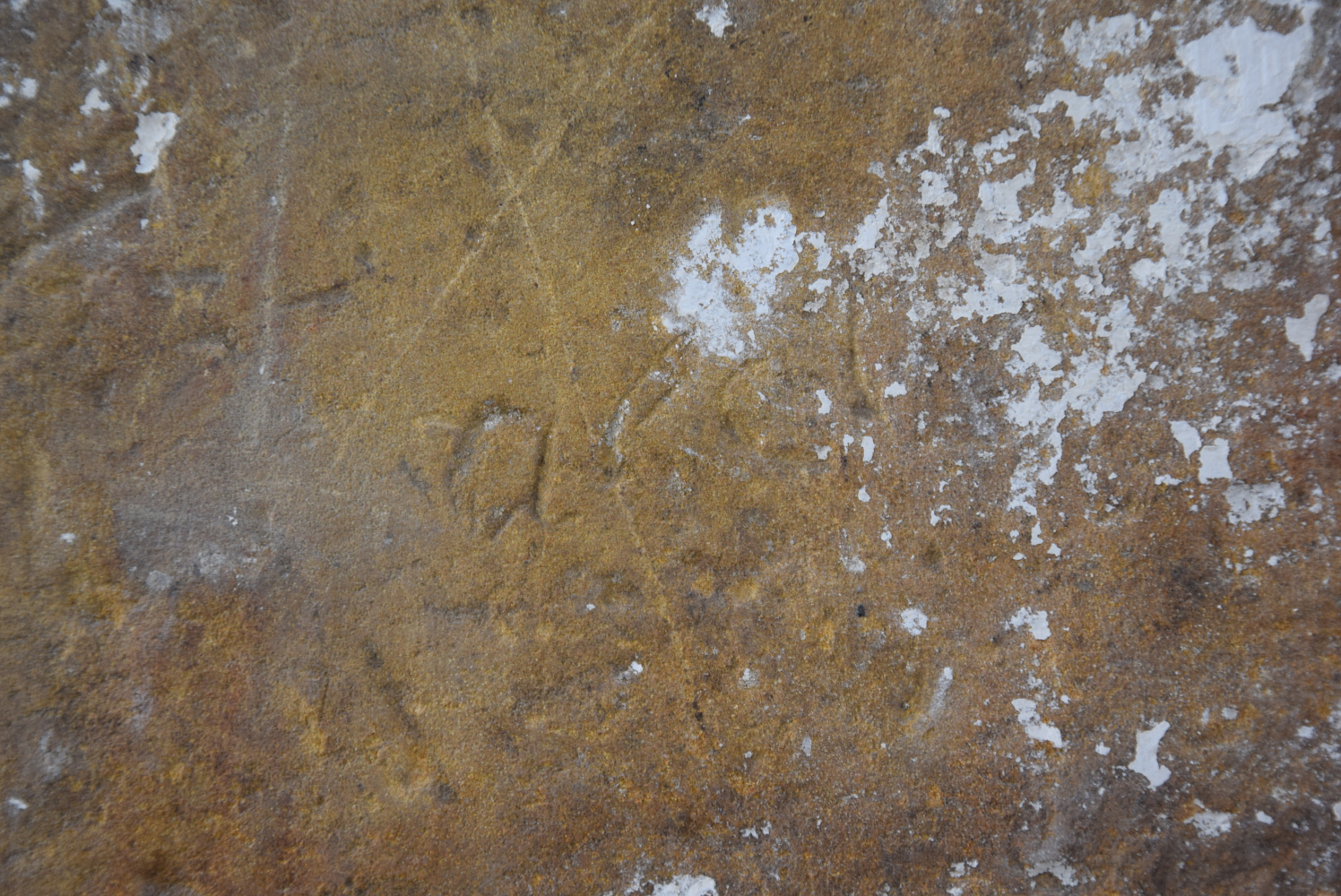

Detail of the graffiti, showing an a and possibly an e
Detail of the graffiti, showing an a and possibly an e (18_AuckCastle_College_5002.jpg)
[ DOWNLOAD] (Full Resolution) right-click and save file
|
Detail of the graffiti, showing an a and possibly an e
(18_AuckCastle_College_5002.jpg) |
JPG
Detail of the graffiti, showing an a and possibly an e
Detail of the graffiti, showing an a and possibly an e (18_AuckCastle_College_5002.jpg)
[ DOWNLOAD] (Full Resolution) right-click and save file
|
1022 Kb
|
The old first-floor window D cut by the west side of the new passage. The jamb, sill and lintel are all chamfered
The old first-floor window D cut by the west side of the new passage. The jamb, sill and lintel are all chamfered (19_AuckCastle_College_5002.jpg)
[ DOWNLOAD] (Full Resolution) right-click and save file
|
The old first-floor window D cut by the west side of the new passage. The jamb, sill and lintel are all chamfered
(19_AuckCastle_College_5002.jpg) |
JPG
The old first-floor window D cut by the west side of the new passage. The jamb, sill and lintel are all chamfered
The old first-floor window D cut by the west side of the new passage. The jamb, sill and lintel are all chamfered (19_AuckCastle_College_5002.jpg)
[ DOWNLOAD] (Full Resolution) right-click and save file
|
943 Kb
|

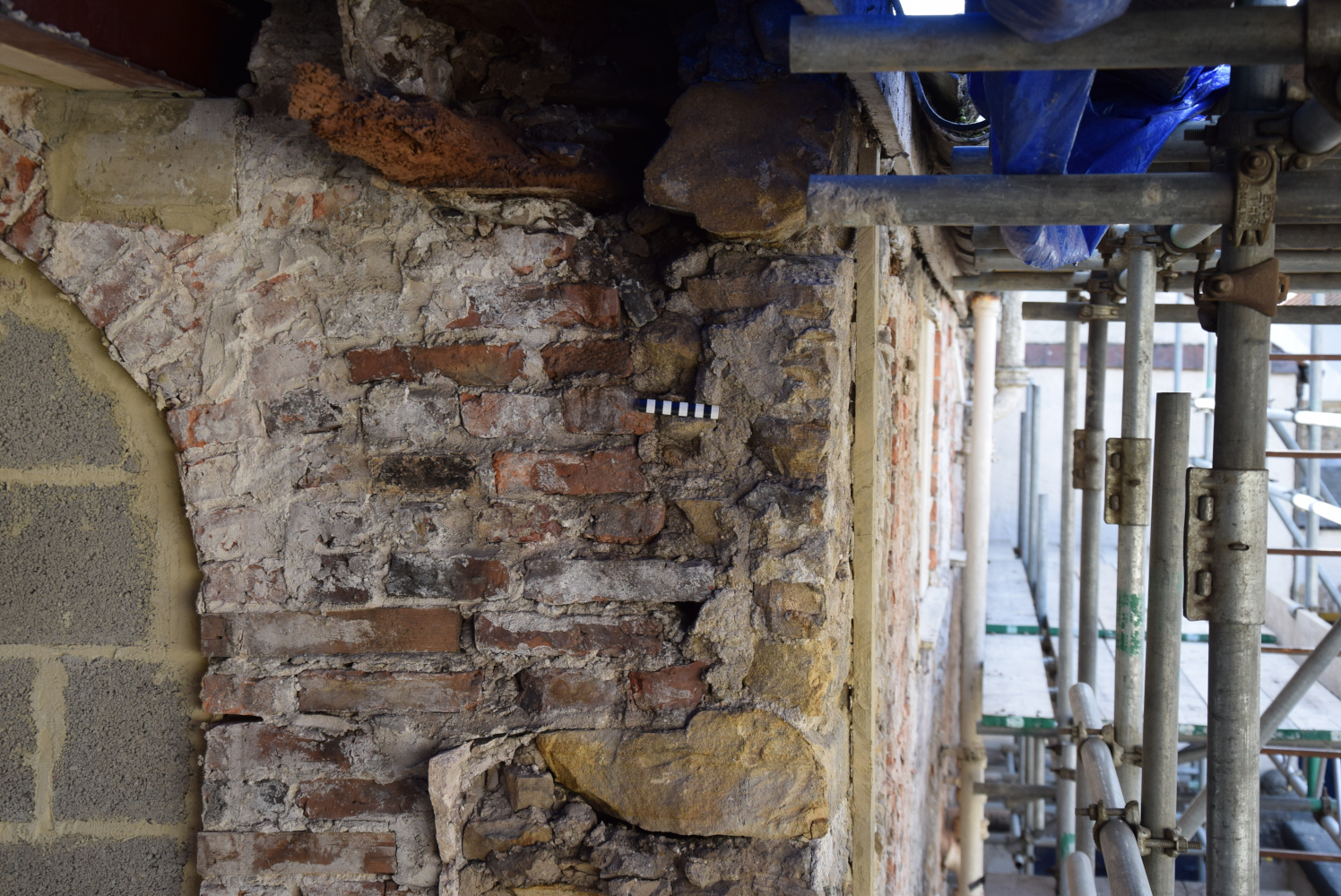

The new construction provided a cross-section of window D. The depth of the sill and the plastered inner face of the wall can be seen here
The new construction provided a cross-section of window D. The depth of the sill and the plastered inner face of the wall can be seen here (20_AuckCastle_College_5002.jpg)
[ DOWNLOAD] (Full Resolution) right-click and save file
|
The new construction provided a cross-section of window D. The depth of the sill and the plastered inner face of the wall can be seen here
(20_AuckCastle_College_5002.jpg) |
JPG
The new construction provided a cross-section of window D. The depth of the sill and the plastered inner face of the wall can be seen here
The new construction provided a cross-section of window D. The depth of the sill and the plastered inner face of the wall can be seen here (20_AuckCastle_College_5002.jpg)
[ DOWNLOAD] (Full Resolution) right-click and save file
|
936 Kb
|
A view from the south end of the new gate passage. The floor of the rooms above the old gate was roughly at the height of the scaffold board at the far end
A view from the south end of the new gate passage. The floor of the rooms above the old gate was roughly at the height of the scaffold board at the far end (21_AuckCastle_College_5002.jpg)
[ DOWNLOAD] (Full Resolution) right-click and save file
|
A view from the south end of the new gate passage. The floor of the rooms above the old gate was roughly at the height of the scaffold board at the far end
(21_AuckCastle_College_5002.jpg) |
JPG
A view from the south end of the new gate passage. The floor of the rooms above the old gate was roughly at the height of the scaffold board at the far end
A view from the south end of the new gate passage. The floor of the rooms above the old gate was roughly at the height of the scaffold board at the far end (21_AuckCastle_College_5002.jpg)
[ DOWNLOAD] (Full Resolution) right-click and save file
|
1020 Kb
|

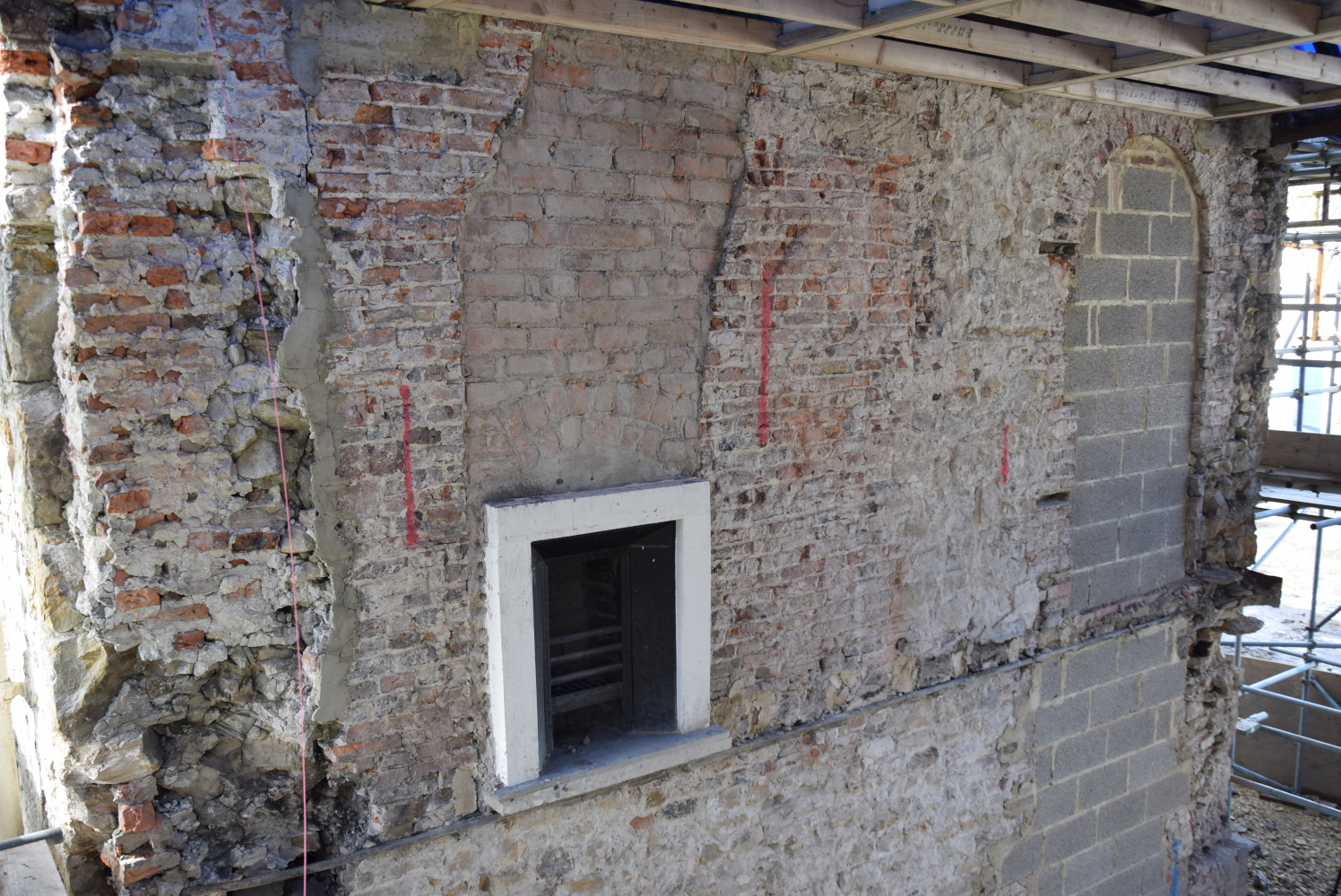

The west face of the new passage contains a mixture of brick and stone, with a modern fireplace and arched passage
The west face of the new passage contains a mixture of brick and stone, with a modern fireplace and arched passage (22_AuckCastle_College_5002.jpg)
[ DOWNLOAD] (Full Resolution) right-click and save file
|
The west face of the new passage contains a mixture of brick and stone, with a modern fireplace and arched passage
(22_AuckCastle_College_5002.jpg) |
JPG
The west face of the new passage contains a mixture of brick and stone, with a modern fireplace and arched passage
The west face of the new passage contains a mixture of brick and stone, with a modern fireplace and arched passage (22_AuckCastle_College_5002.jpg)
[ DOWNLOAD] (Full Resolution) right-click and save file
|
993 Kb
|
The arched passage is also visible in the east side of the gateway
The arched passage is also visible in the east side of the gateway (23_AuckCastle_College_5002.jpg)
[ DOWNLOAD] (Full Resolution) right-click and save file
|
The arched passage is also visible in the east side of the gateway
(23_AuckCastle_College_5002.jpg) |
JPG
The arched passage is also visible in the east side of the gateway
The arched passage is also visible in the east side of the gateway (23_AuckCastle_College_5002.jpg)
[ DOWNLOAD] (Full Resolution) right-click and save file
|
1009 Kb
|
Cross-section of the first-floor wall at the north-west corner of the new gate passage
Cross-section of the first-floor wall at the north-west corner of the new gate passage (24_AuckCastle_College_5002.jpg)
[ DOWNLOAD] (Full Resolution) right-click and save file
|
Cross-section of the first-floor wall at the north-west corner of the new gate passage
(24_AuckCastle_College_5002.jpg) |
JPG
Cross-section of the first-floor wall at the north-west corner of the new gate passage
Cross-section of the first-floor wall at the north-west corner of the new gate passage (24_AuckCastle_College_5002.jpg)
[ DOWNLOAD] (Full Resolution) right-click and save file
|
988 Kb
|
The blocked first-floor window E, east of the new gate passage, is much larger than the window C over the arch and is set lower in the wall
The blocked first-floor window E, east of the new gate passage, is much larger than the window C over the arch and is set lower in the wall (25_AuckCastle_College_5002.jpg)
[ DOWNLOAD] (Full Resolution) right-click and save file
|
The blocked first-floor window E, east of the new gate passage, is much larger than the window C over the arch and is set lower in the wall
(25_AuckCastle_College_5002.jpg) |
JPG
The blocked first-floor window E, east of the new gate passage, is much larger than the window C over the arch and is set lower in the wall
The blocked first-floor window E, east of the new gate passage, is much larger than the window C over the arch and is set lower in the wall (25_AuckCastle_College_5002.jpg)
[ DOWNLOAD] (Full Resolution) right-click and save file
|
940 Kb
|
Blocked window F is similar in form and proportions to window C
Blocked window F is similar in form and proportions to window C (26_AuckCastle_College_5002.jpg)
[ DOWNLOAD] (Full Resolution) right-click and save file
|
Blocked window F is similar in form and proportions to window C
(26_AuckCastle_College_5002.jpg) |
JPG
Blocked window F is similar in form and proportions to window C
Blocked window F is similar in form and proportions to window C (26_AuckCastle_College_5002.jpg)
[ DOWNLOAD] (Full Resolution) right-click and save file
|
950 Kb
|
The east jamb of another window G, immediately west of window F
The east jamb of another window G, immediately west of window F (27_AuckCastle_College_5002.jpg)
[ DOWNLOAD] (Full Resolution) right-click and save file
|
The east jamb of another window G, immediately west of window F
(27_AuckCastle_College_5002.jpg) |
JPG
The east jamb of another window G, immediately west of window F
The east jamb of another window G, immediately west of window F (27_AuckCastle_College_5002.jpg)
[ DOWNLOAD] (Full Resolution) right-click and save file
|
879 Kb
|
Another isolated window jamb, H, between later openings
Another isolated window jamb, H, between later openings (28_AuckCastle_College_5002.jpg)
[ DOWNLOAD] (Full Resolution) right-click and save file
|
Another isolated window jamb, H, between later openings
(28_AuckCastle_College_5002.jpg) |
JPG
Another isolated window jamb, H, between later openings
Another isolated window jamb, H, between later openings (28_AuckCastle_College_5002.jpg)
[ DOWNLOAD] (Full Resolution) right-click and save file
|
887 Kb
|

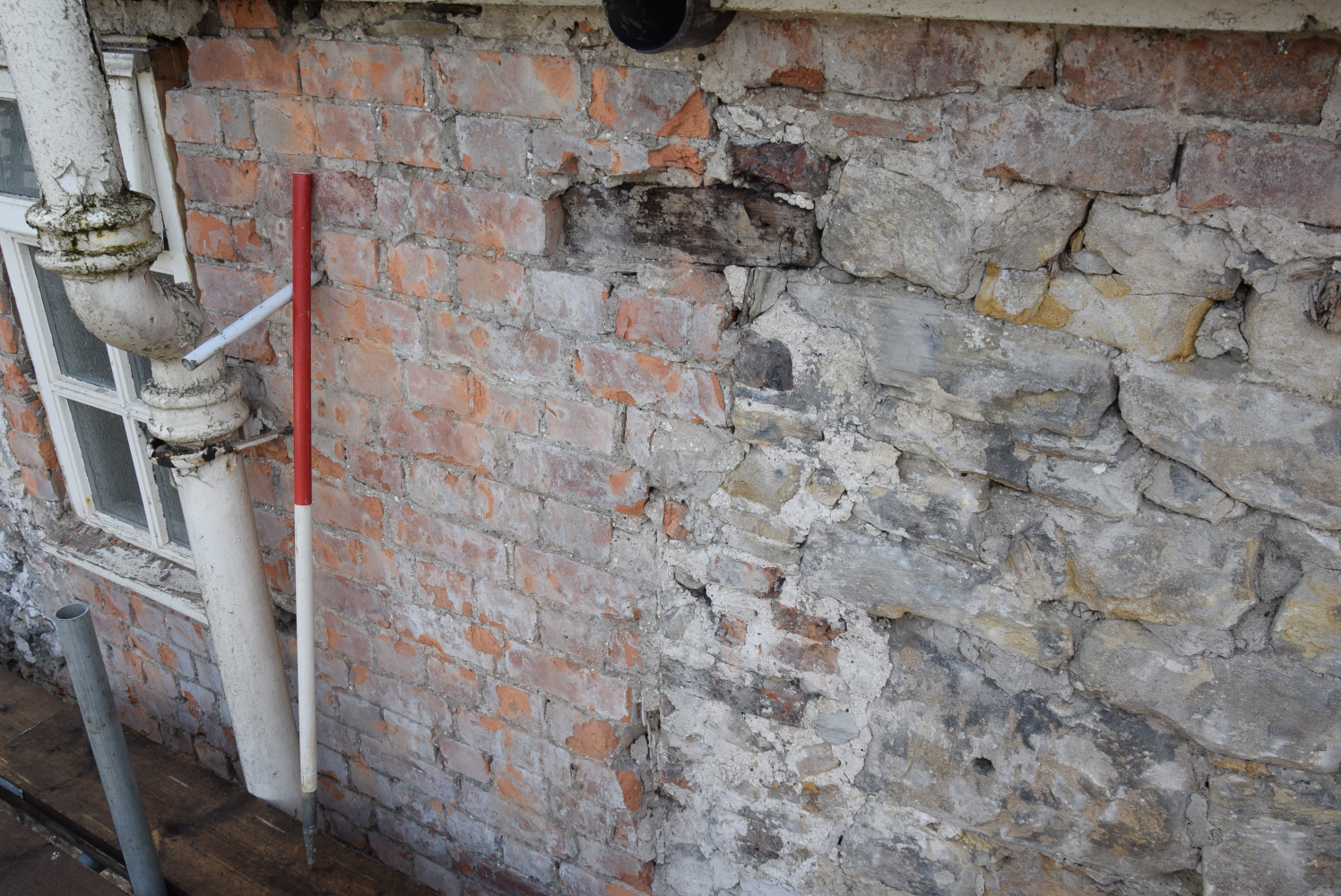

This short section of wooden lintel I may be the remains of a former window
This short section of wooden lintel I may be the remains of a former window (29_AuckCastle_College_5002.jpg)
[ DOWNLOAD] (Full Resolution) right-click and save file
|
This short section of wooden lintel I may be the remains of a former window
(29_AuckCastle_College_5002.jpg) |
JPG
This short section of wooden lintel I may be the remains of a former window
This short section of wooden lintel I may be the remains of a former window (29_AuckCastle_College_5002.jpg)
[ DOWNLOAD] (Full Resolution) right-click and save file
|
918 Kb
|
The western part of the north wall. The blocked ground-floor window J is at the centre
The western part of the north wall. The blocked ground-floor window J is at the centre (30_AuckCastle_College_5002.jpg)
[ DOWNLOAD] (Full Resolution) right-click and save file
|
The western part of the north wall. The blocked ground-floor window J is at the centre
(30_AuckCastle_College_5002.jpg) |
JPG
The western part of the north wall. The blocked ground-floor window J is at the centre
The western part of the north wall. The blocked ground-floor window J is at the centre (30_AuckCastle_College_5002.jpg)
[ DOWNLOAD] (Full Resolution) right-click and save file
|
1.01 Mb
|

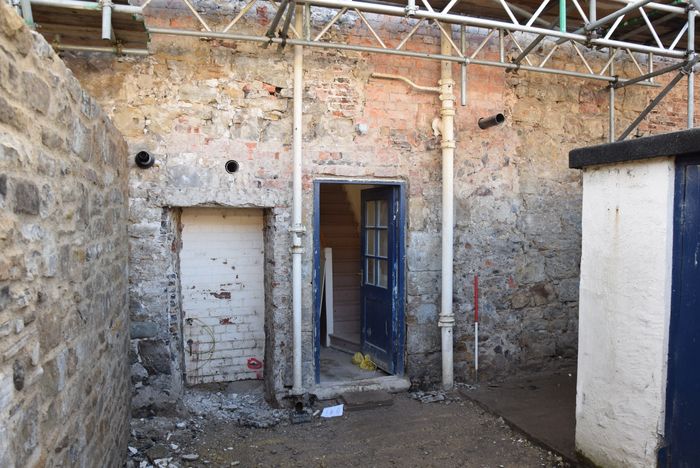

Large quoins beside the blue door show that this is an old opening K.
Large quoins beside the blue door show that this is an old opening K. (31_AuckCastle_College_5002.jpg)
[ DOWNLOAD] (Full Resolution) right-click and save file
|
Large quoins beside the blue door show that this is an old opening K.
(31_AuckCastle_College_5002.jpg) |
JPG
Large quoins beside the blue door show that this is an old opening K.
Large quoins beside the blue door show that this is an old opening K. (31_AuckCastle_College_5002.jpg)
[ DOWNLOAD] (Full Resolution) right-click and save file
|
981 Kb
|
The wall scar and the surviving half of the west range fireplace L
The wall scar and the surviving half of the west range fireplace L (32_AuckCastle_College_5002.jpg)
[ DOWNLOAD] (Full Resolution) right-click and save file
|
The wall scar and the surviving half of the west range fireplace L
(32_AuckCastle_College_5002.jpg) |
JPG
The wall scar and the surviving half of the west range fireplace L
The wall scar and the surviving half of the west range fireplace L (32_AuckCastle_College_5002.jpg)
[ DOWNLOAD] (Full Resolution) right-click and save file
|
1.05 Mb
|

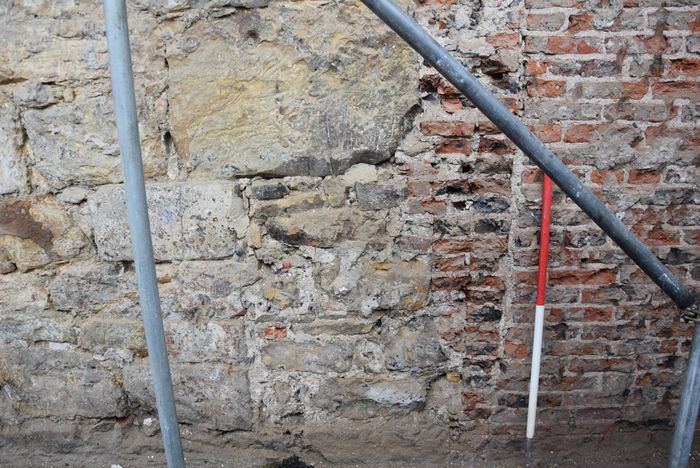

Fireplace L, cut by a later flue and blocked with stone and old brick
Fireplace L, cut by a later flue and blocked with stone and old brick (33_AuckCastle_College_5002.jpg)
[ DOWNLOAD] (Full Resolution) right-click and save file
|
Fireplace L, cut by a later flue and blocked with stone and old brick
(33_AuckCastle_College_5002.jpg) |
JPG
Fireplace L, cut by a later flue and blocked with stone and old brick
Fireplace L, cut by a later flue and blocked with stone and old brick (33_AuckCastle_College_5002.jpg)
[ DOWNLOAD] (Full Resolution) right-click and save file
|
1.85 Mb
|
Detail of the knife-sharpening marks on the lintel and jamb of fireplace L
Detail of the knife-sharpening marks on the lintel and jamb of fireplace L (34_AuckCastle_College_5002.jpg)
[ DOWNLOAD] (Full Resolution) right-click and save file
|
Detail of the knife-sharpening marks on the lintel and jamb of fireplace L
(34_AuckCastle_College_5002.jpg) |
JPG
Detail of the knife-sharpening marks on the lintel and jamb of fireplace L
Detail of the knife-sharpening marks on the lintel and jamb of fireplace L (34_AuckCastle_College_5002.jpg)
[ DOWNLOAD] (Full Resolution) right-click and save file
|
980 Kb
|
The jambs of the first-floor fireplace M are separated by the later brick flue
The jambs of the first-floor fireplace M are separated by the later brick flue (35_AuckCastle_College_5002.jpg)
[ DOWNLOAD] (Full Resolution) right-click and save file
|
The jambs of the first-floor fireplace M are separated by the later brick flue
(35_AuckCastle_College_5002.jpg) |
JPG
The jambs of the first-floor fireplace M are separated by the later brick flue
The jambs of the first-floor fireplace M are separated by the later brick flue (35_AuckCastle_College_5002.jpg)
[ DOWNLOAD] (Full Resolution) right-click and save file
|
874 Kb
|

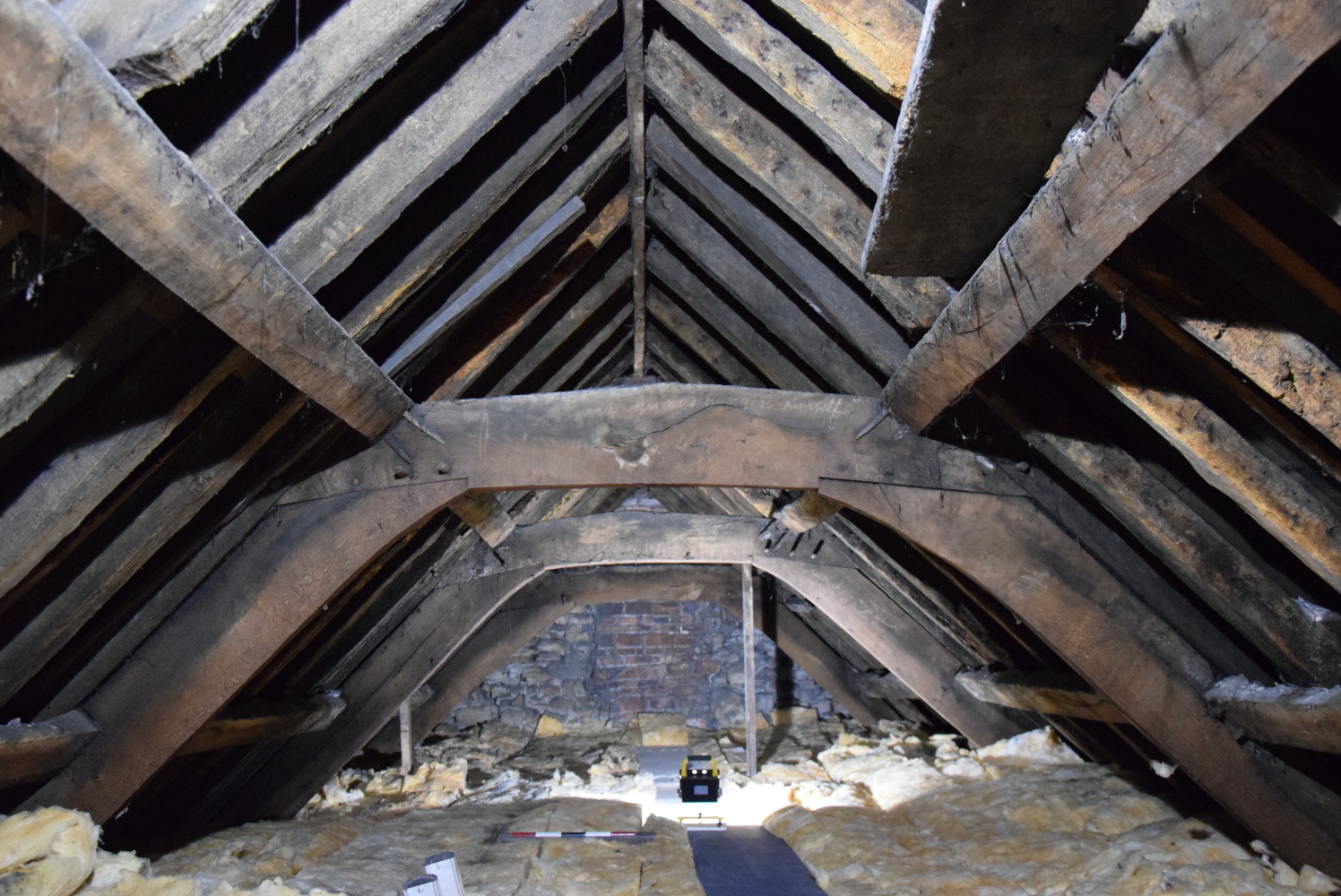

Trusses 1-3 in the roof over no. 16. A view looking west
Trusses 1-3 in the roof over no. 16. A view looking west (36_AuckCastle_College_5002.jpg)
[ DOWNLOAD] (Full Resolution) right-click and save file
|
Trusses 1-3 in the roof over no. 16. A view looking west
(36_AuckCastle_College_5002.jpg) |
JPG
Trusses 1-3 in the roof over no. 16. A view looking west
Trusses 1-3 in the roof over no. 16. A view looking west (36_AuckCastle_College_5002.jpg)
[ DOWNLOAD] (Full Resolution) right-click and save file
|
917 Kb
|
Truss 9 at the east end of the range
Truss 9 at the east end of the range (37_AuckCastle_College_5002.jpg)
[ DOWNLOAD] (Full Resolution) right-click and save file
|
Truss 9 at the east end of the range
(37_AuckCastle_College_5002.jpg) |
JPG
Truss 9 at the east end of the range
Truss 9 at the east end of the range (37_AuckCastle_College_5002.jpg)
[ DOWNLOAD] (Full Resolution) right-click and save file
|
938 Kb
|

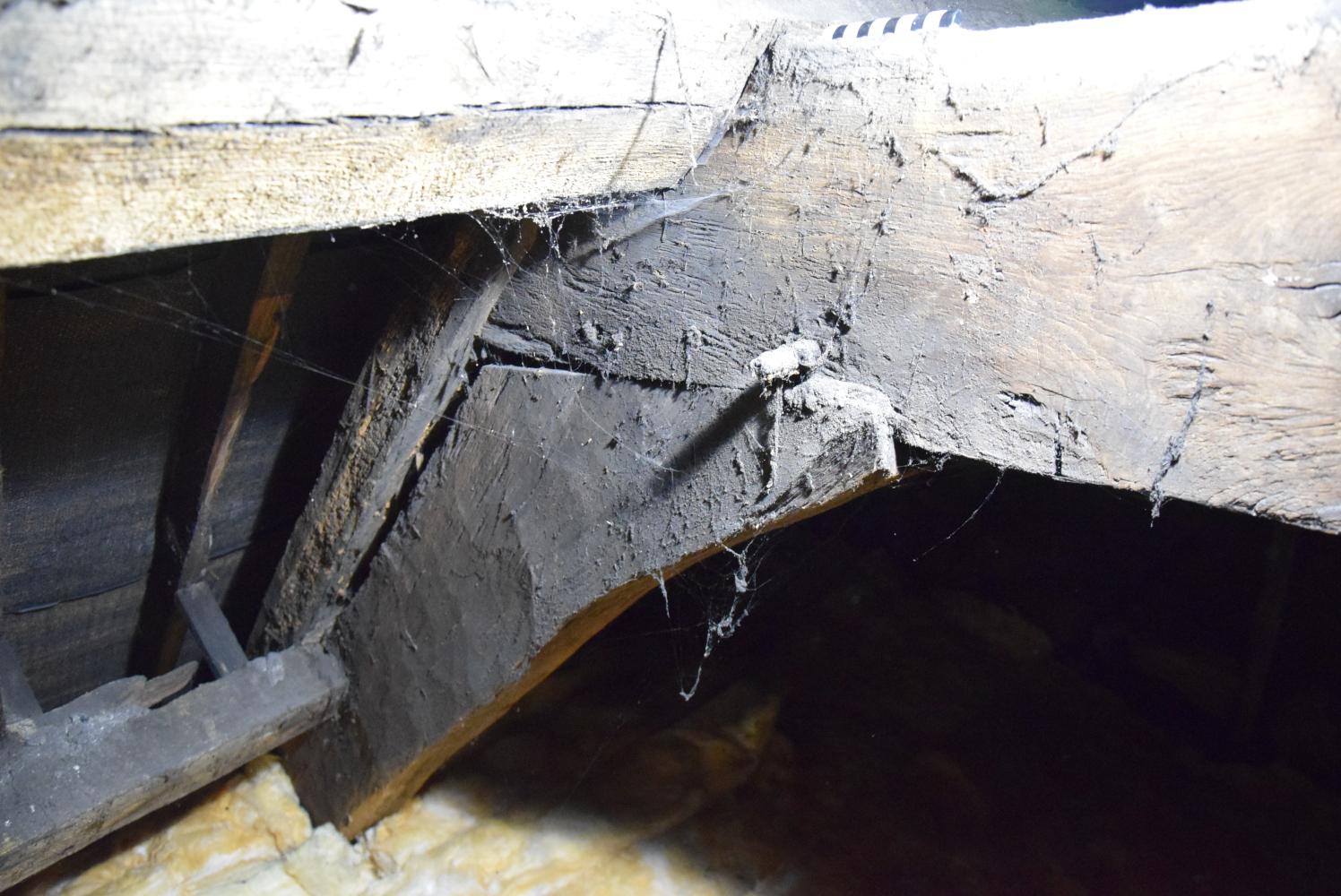

Adze marks on the east face of the principal rafter in truss 1
Adze marks on the east face of the principal rafter in truss 1 (38_AuckCastle_College_5002.jpg)
[ DOWNLOAD] (Full Resolution) right-click and save file
|
Adze marks on the east face of the principal rafter in truss 1
(38_AuckCastle_College_5002.jpg) |
JPG
Adze marks on the east face of the principal rafter in truss 1
Adze marks on the east face of the principal rafter in truss 1 (38_AuckCastle_College_5002.jpg)
[ DOWNLOAD] (Full Resolution) right-click and save file
|
865 Kb
|
Carpenters’ marks on the east face of the collar of truss 3
Carpenters’ marks on the east face of the collar of truss 3 (39_AuckCastle_College_5002.jpg)
[ DOWNLOAD] (Full Resolution) right-click and save file
|
Carpenters’ marks on the east face of the collar of truss 3
(39_AuckCastle_College_5002.jpg) |
JPG
Carpenters’ marks on the east face of the collar of truss 3
Carpenters’ marks on the east face of the collar of truss 3 (39_AuckCastle_College_5002.jpg)
[ DOWNLOAD] (Full Resolution) right-click and save file
|
903 Kb
|

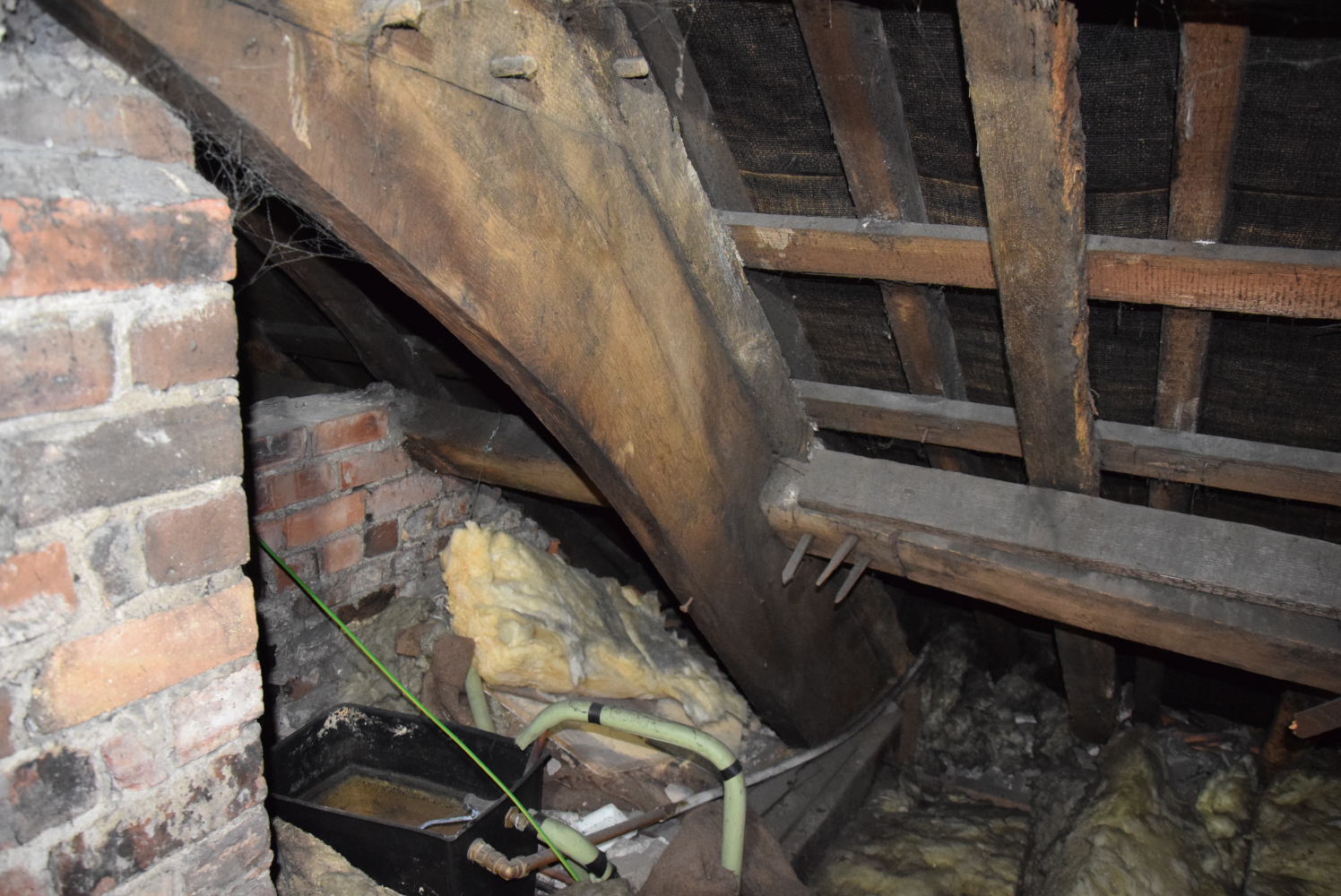

The north limb of truss 5 and the chimney on the west side of the gate passage
The north limb of truss 5 and the chimney on the west side of the gate passage (40_AuckCastle_College_5002.jpg)
[ DOWNLOAD] (Full Resolution) right-click and save file
|
The north limb of truss 5 and the chimney on the west side of the gate passage
(40_AuckCastle_College_5002.jpg) |
JPG
The north limb of truss 5 and the chimney on the west side of the gate passage
The north limb of truss 5 and the chimney on the west side of the gate passage (40_AuckCastle_College_5002.jpg)
[ DOWNLOAD] (Full Resolution) right-click and save file
|
880 Kb
|
The south end of truss 6, over the gate passage
The south end of truss 6, over the gate passage (41_AuckCastle_College_5002.jpg)
[ DOWNLOAD] (Full Resolution) right-click and save file
|
The south end of truss 6, over the gate passage
(41_AuckCastle_College_5002.jpg) |
JPG
The south end of truss 6, over the gate passage
The south end of truss 6, over the gate passage (41_AuckCastle_College_5002.jpg)
[ DOWNLOAD] (Full Resolution) right-click and save file
|
988 Kb
|
Detail of the rotted end of the truss 6 tie beam
Detail of the rotted end of the truss 6 tie beam (42_AuckCastle_College_5002.jpg)
[ DOWNLOAD] (Full Resolution) right-click and save file
|
Detail of the rotted end of the truss 6 tie beam
(42_AuckCastle_College_5002.jpg) |
JPG
Detail of the rotted end of the truss 6 tie beam
Detail of the rotted end of the truss 6 tie beam (42_AuckCastle_College_5002.jpg)
[ DOWNLOAD] (Full Resolution) right-click and save file
|
721 Kb
|
The names of 19th- and 20th-century masons in mortar on the west face of the western chimney
The names of 19th- and 20th-century masons in mortar on the west face of the western chimney (43_AuckCastle_College_5002.jpg)
[ DOWNLOAD] (Full Resolution) right-click and save file
|
The names of 19th- and 20th-century masons in mortar on the west face of the western chimney
(43_AuckCastle_College_5002.jpg) |
JPG
The names of 19th- and 20th-century masons in mortar on the west face of the western chimney
The names of 19th- and 20th-century masons in mortar on the west face of the western chimney (43_AuckCastle_College_5002.jpg)
[ DOWNLOAD] (Full Resolution) right-click and save file
|
989 Kb
|
Detail of the cartouche left by G Herron
Detail of the cartouche left by G Herron (44_AuckCastle_College_5002.jpg)
[ DOWNLOAD] (Full Resolution) right-click and save file
|
Detail of the cartouche left by G Herron
(44_AuckCastle_College_5002.jpg) |
JPG
Detail of the cartouche left by G Herron
Detail of the cartouche left by G Herron (44_AuckCastle_College_5002.jpg)
[ DOWNLOAD] (Full Resolution) right-click and save file
|
1.10 Mb
|
Chalk inscription on the west face of truss 2: “Watch and pray” and “Danger”
Chalk inscription on the west face of truss 2: “Watch and pray” and “Danger” (45_AuckCastle_College_5002.jpg)
[ DOWNLOAD] (Full Resolution) right-click and save file
|
Chalk inscription on the west face of truss 2: “Watch and pray” and “Danger”
(45_AuckCastle_College_5002.jpg) |
JPG
Chalk inscription on the west face of truss 2: “Watch and pray” and “Danger”
Chalk inscription on the west face of truss 2: “Watch and pray” and “Danger” (45_AuckCastle_College_5002.jpg)
[ DOWNLOAD] (Full Resolution) right-click and save file
|
815 Kb
|
“Love one another” on the principal rafter of the same truss
“Love one another” on the principal rafter of the same truss (46_AuckCastle_College_5002.jpg)
[ DOWNLOAD] (Full Resolution) right-click and save file
|
“Love one another” on the principal rafter of the same truss
(46_AuckCastle_College_5002.jpg) |
JPG
“Love one another” on the principal rafter of the same truss
“Love one another” on the principal rafter of the same truss (46_AuckCastle_College_5002.jpg)
[ DOWNLOAD] (Full Resolution) right-click and save file
|
742 Kb
|
“Seek there and ye shall…” on the east face of truss 2
“Seek there and ye shall…” on the east face of truss 2 (47_AuckCastle_College_5002.jpg)
[ DOWNLOAD] (Full Resolution) right-click and save file
|
“Seek there and ye shall…” on the east face of truss 2
(47_AuckCastle_College_5002.jpg) |
JPG
“Seek there and ye shall…” on the east face of truss 2
“Seek there and ye shall…” on the east face of truss 2 (47_AuckCastle_College_5002.jpg)
[ DOWNLOAD] (Full Resolution) right-click and save file
|
781 Kb
|
The collar of truss 3, with the smudged inscription “and Judas hanged himself”
The collar of truss 3, with the smudged inscription “and Judas hanged himself” (48_AuckCastle_College_5002.jpg)
[ DOWNLOAD] (Full Resolution) right-click and save file
|
The collar of truss 3, with the smudged inscription “and Judas hanged himself”
(48_AuckCastle_College_5002.jpg) |
JPG
The collar of truss 3, with the smudged inscription “and Judas hanged himself”
The collar of truss 3, with the smudged inscription “and Judas hanged himself” (48_AuckCastle_College_5002.jpg)
[ DOWNLOAD] (Full Resolution) right-click and save file
|
776 Kb
|
